Introducing the Supra Touch Series
Supra Touch brings a wealth of new features that make it more powerful and more versatile.
View comparison chart
Advanced but easy to use
Supra Touch has an uncomplicated, intuitive icon-based display paired with a 5-inch touchscreen, making it quick and easy to navigate and program. It also reduces the time it takes to train new staff.
VentGrid™ merged ventilation
In addition to traditional staged control, Supra Touch offers VentGrid merged ventilation. Merged mode provides optimized ventilation control with smoother transitions than traditional staged mode does.
More than just temperature
Supra Touch can monitor humidity, ammonia, carbon dioxide, and more. It can then use those conditions to influence how it controls equipment. For example, if the humidity is too high, it can switch heaters on or increase ventilation to reduce it.
| Programming options |
| Automatic temperature control |
|
|
| Independent control zones |
4 |
|
| Staged ventilation mode |
|
|
| VentGrid™ merged ventilation mode |
|
|
| Manual override mode |
|
|
| Growth curves |
4 |
|
| Minimum ventilation curves |
4 |
|
| Secondary modifiers |
|
|
| Settings groups |
|
|
| Relay stagger for startup load |
|
|
| Hysteresis |
|
|
| Sensor inputs |
| Phason 3K Series temperature inputs |
5 |
|
| Outdoor temperature |
|
|
| Phason Relative Humidity Sensor |
|
|
| DOL 114 temperature and humidity |
|
|
| DOL 16 light |
|
|
| DOL 119 carbon dioxide (CO2) |
|
|
| DOL 53 ammonia (NH3) |
|
|
| Pulse counter |
|
|
| Outputs (variable stages and relays) |
| Variable AC stages |
4 |
|
| 0 to 10 V DC signal outputs |
4 |
|
| General-purpose relays |
12 |
|
| Alarm relay |
|
|
| Variable and relay configuration options |
| Variable cooling and heating |
|
|
| Relay cooling and heating |
|
|
| Duty cycle |
|
|
| Actuator / inlet |
|
|
| Curtain machine / winch |
|
|
| Air curtains |
|
|
| VFD control |
|
|
| Other |
| Touchscreen |
|
|
| Scrolling status screen |
|
|
| Updatable firmware |
|
|
| Transferable settings |
|
|
| Diagnostic |
|
|
| Hourly and daily logs |
|
|
| NEMA 4X enclosure |
|
|
| CSA approval |
|
|
| 2-year warranty |
|
|
- Incoming power
120/230 VAC, 50/60 Hz
- Variable AC stages
10 A at 120/230 VAC, general-purpose (resistive)
7 FLA at 120/230 VAC, PSC motor
1/2 HP at 120 VAC, 1 HP at 230 VAC, PSC motor
- Variable AC stage fuses
15 A, 250 VAC ABC-type ceramic
- Variable DC stages (optional)
0 to 10 VDC, 2K Ω load
- Variable DC stages (optional)
0 to 10 VDC, 2K Ω load
- Relay stages
10 A at 120/230 VAC, general-purpose (resistive)
1/3 HP at 120 VAC, 1/2 HP at 230 VAC
360 W tungsten at 120 VAC
- Alarm relay
0.4 A at 125 VAC, 2.0 A at 30 VDC, resistive load
0.2 A at 125 VAC, 1.0 A at 30 VDC, inductive load
Manual Override Box
The Manual Override Box increases the load handling capability of your control's relays and provides an external disconnect.
View Product
Variable DC Module

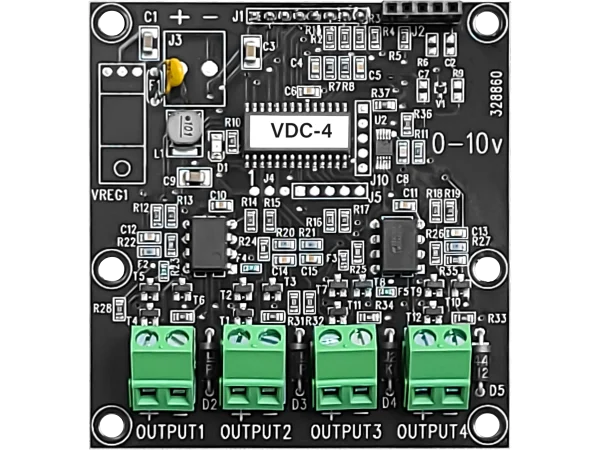

The Variable DC Module has four 0 to 10 V DC signal outputs.
View Product
FanDRIVE (1x14 FLA)
FanDRIVEs expand the capacity of your control system by taking the 0 to 10 VDC signal from the control and adjusting fan speed.
View Product
FanDRIVE (2x7 FLA)
FanDRIVEs expand the capacity of your control system by taking the 0 to 10 VDC signal from the control and adjusting fan speed.
View Product
Relative Humidity Sensor
Relative Humidity Sensors allow you to monitor humidity up to 100 feet away from the control. Connecting a humidity sensor allows you to use the high-humidity bypass feature.
View Product
Temperature Sensors
Additional temperature sensors allow you to use 4-zone temperature averaging. Probes are available several lengths and can be extended up to 500 feet using extension cable.
View Product
Wind Speed Sensor
The Wind Speed Sensor is a rugged and durable anemometer that provides high accuracy over a wide range of wind speeds.
View Product
DOL119 CO2 Sensor
The DOL 119 measures carbon dioxide (CO2) in a range that has been selected to care for animal comfort and monitor error conditions.
View Product
DOL53 Ammonia (NH3) Sensor
The DOL 53 is designed for stationery, continuous monitoring of ammonia (NH3) in livestock and industrial facilities.
View Product
DOL114 Temperature and Humidity Sensor
The DOL 114 is a high-precision temperature and relative humidity sensor available in 4 to 20 mA, 0 to 3 V, 0 to 5 V, and 0 to 10 V versions.
View Product
DOL16 Light Sensor
The DOL16 measures light intensity in two different ranges: 0 to 100 and 0 to 1000 lux.
View Product
General
How big is the control?
The enclosure is 11.85 x 11 x 3.95 inches (30 x 28 x 10 cm). The heatsinks add an additional 2.5 inches (7 cm) to the width.
Can a Supra Touch display kit be used to upgrade a Supra-RS?
Unfortunately, no. The control board for the Supra Touch is different than the one for the Supra-RS. A complete control will need to be purchased.
Can the Supra Touch measure THI?
No. The Supra Touch can measure humidity and have secondary modifiers based on humidity, but it does not measure THI. If you need a control to measure THI, look at the AutoFlex Connect.
Does it have a manual override?
Yes. There is a software manual override that can be accessed from the Supra Touch’s menu. For more information, see Using manual override in the user manual.
Can the Supra Touch control misting and fogging?
The Supra Touch has time or temperature-based duty cycles, as well as timed events. A more feature-rich misting and fogging control system can be found in the AutoFlex Connect.
Installation
Where do I configure regular curtains with no feedback?
Curtains with no feedback are configured under the Inlets tab.
Can my zone temperature be the average of multiple temperature sensors?
Yes. All sensors assigned to control the same zone are automatically averaged to calculate the zone reading.
What does the master set point do?
The master set point is a quick way to alter the set points of all the equipment in a zone. When the master set point is changed, all the equipment set points in that zone are changed proportionally.
Troubleshooting
Why are my variable AC fans operating erratically?
Are you using three-phase power? The control and the AC fan must be connected to the same phase of power. See Using three-phase power in the user manual for more information.
