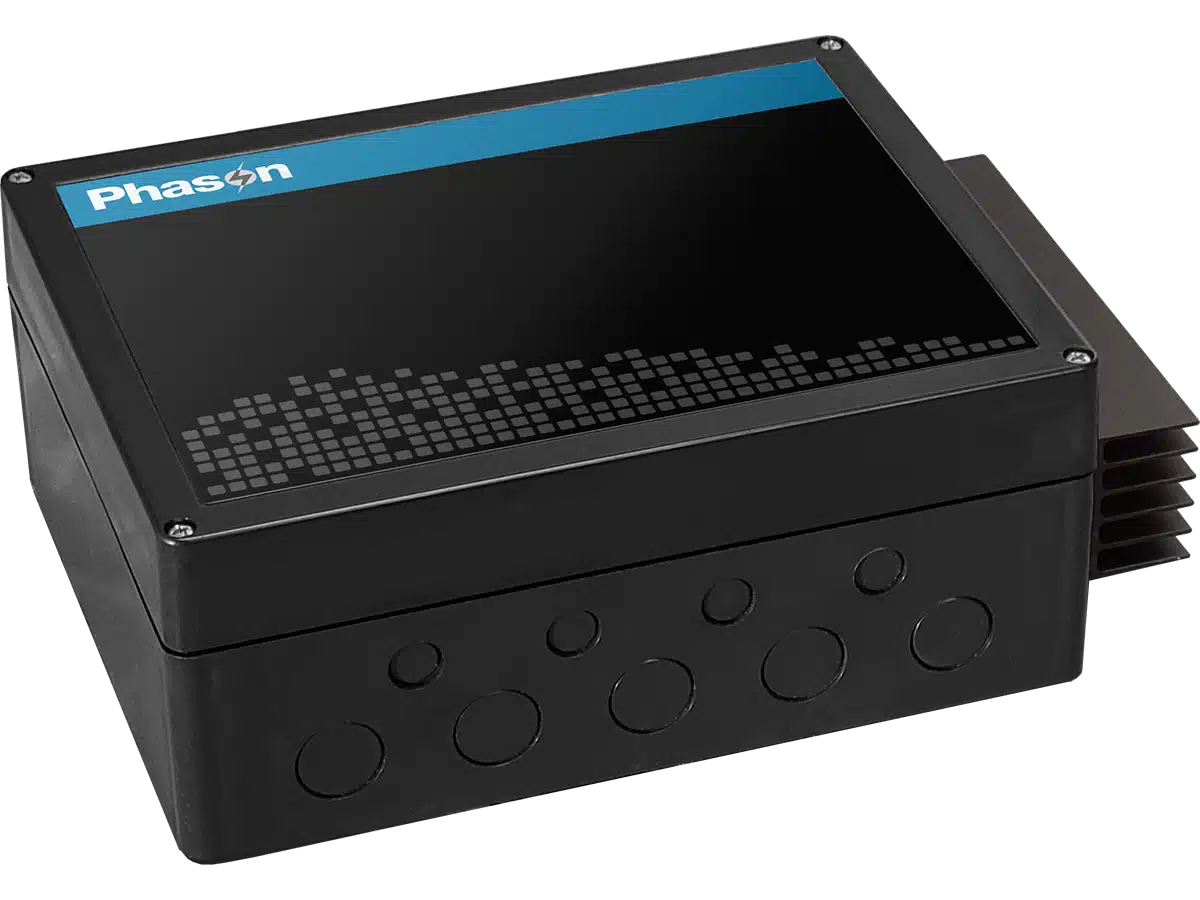

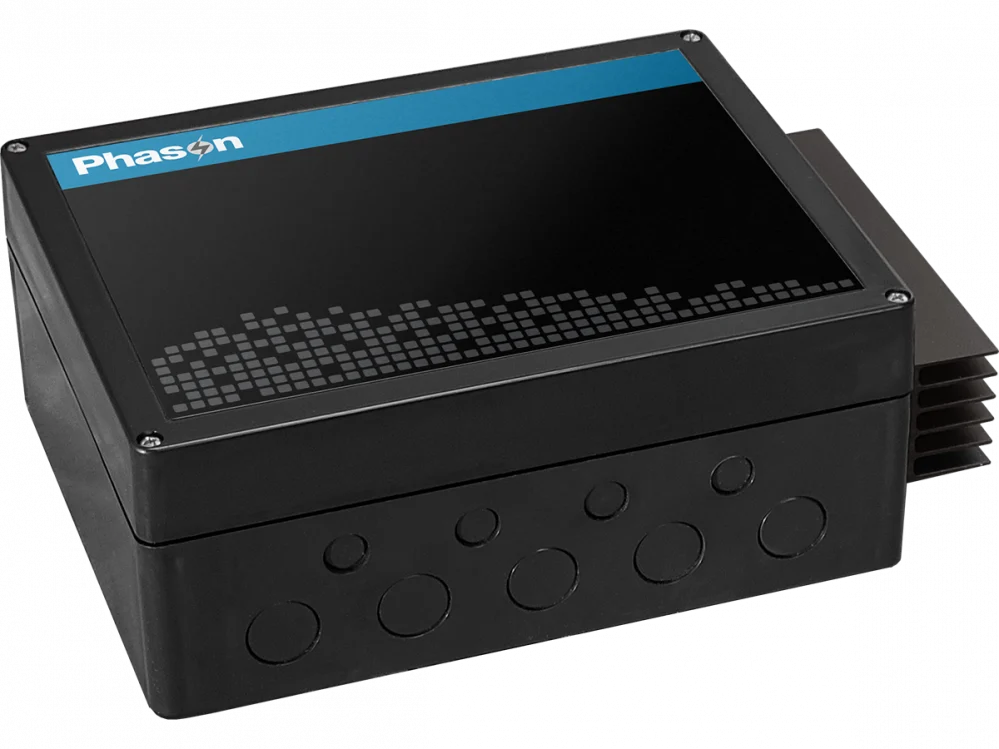

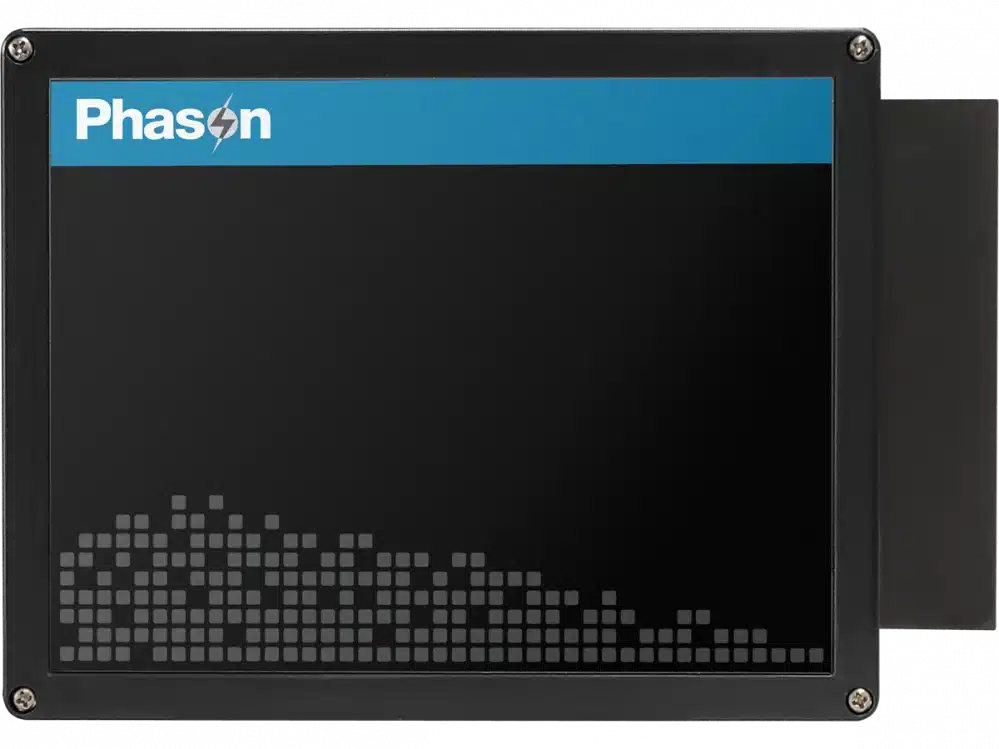

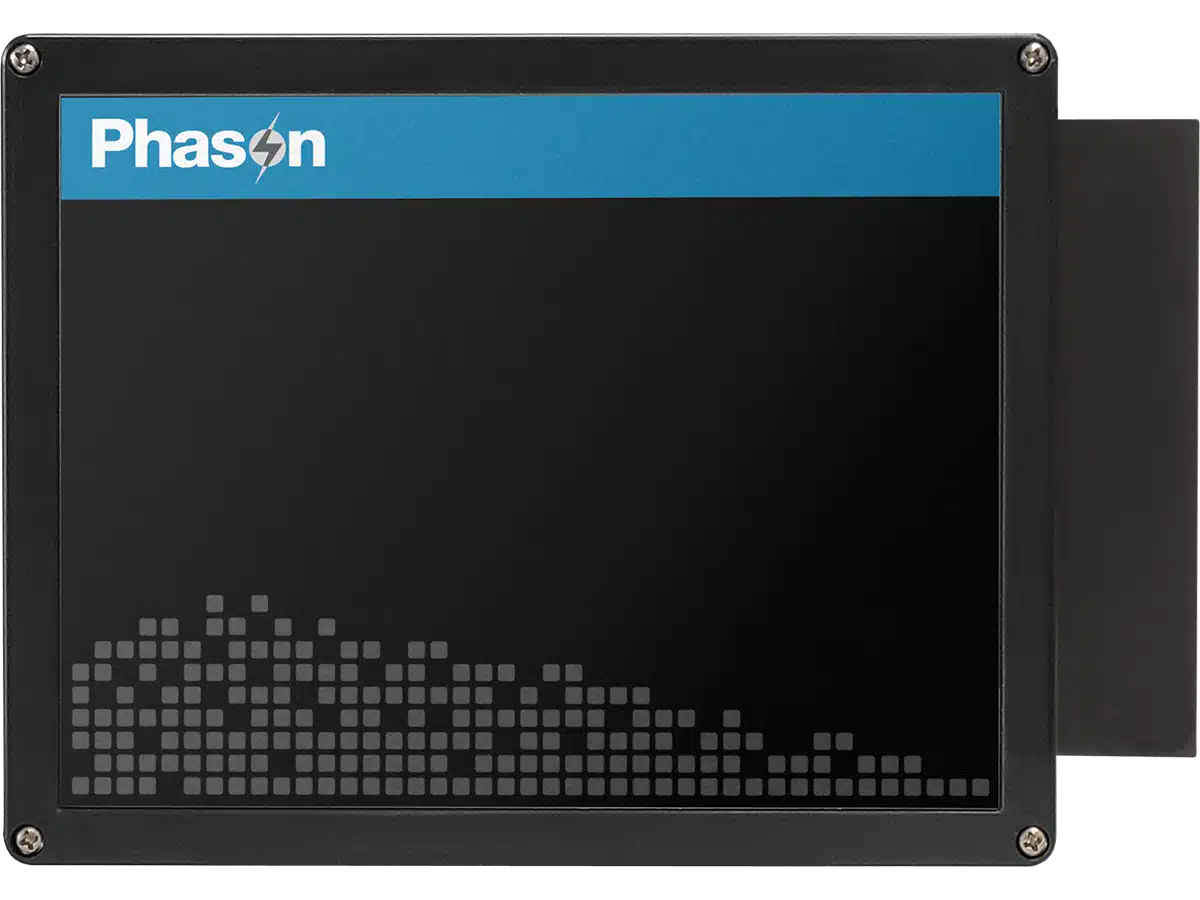

FanDRIVE (2×7 FLA)

Model: FD-2-7

FanDRIVE (2×7 FLA)

Model: FD-2-7
A cost-effective way to increase the capacity of your fan control system

FanDRIVE model FD-2-7 is an expansion control that has two 7 FLA variable AC stages for adjusting fan speed.

Installs easily; requires no additional programming

The FanDRIVE connects to a master control and accepts 0 to 10 VDC signals that set the variable AC outputs. Installation is simple and there is no additional configuration required; FanDRIVEs follow the programming of the master control.

See example

The FanDRIVE can control fans connected to any phase. This gives you the ability to distribute loads between all phases on a three-phase system.


In Stock

SKU: FD-2-7 Category:
  • Two variable AC stages
  • Two DC signal inputs (0 to 10 V)
  • Manual override
  • Four motor curve options
  • Expandable capacity using additional units
  • NEMA 4X enclosure (Corrosion-resistant, water-resistant, and fire-retardant)
  • CSA approval
  • Limited warranty
  • Incoming power
    120/230 VAC, 50/60 Hz
  • Variable AC stages
    7 FLA at 120/230 VAC, PSC motor
    1/2 HP at 120 VAC, 1 HP at 230 VAC, PSC motor
  • Variable DC signal
    0 to 10 V, 30 mA
  • Control fuse
    250 V, 1 A fast-acting glass
  • Variable AC fuses
    15 A, 250 VAC ABC-type ceramic
