- Compact sensor: 3-1/2 x 11/16-in. (89 x 18 mm)
- Adjustable time delay
- Adjustable activation distance
- LED status indicator
- 6.6-ft. (2 m) cable
- Immune to EMI, short circuits, and overloads
- Rugged and durable design with IP 69K enclosure
- CE, C-UL, and UL certification
- DOL manufacturer warranty

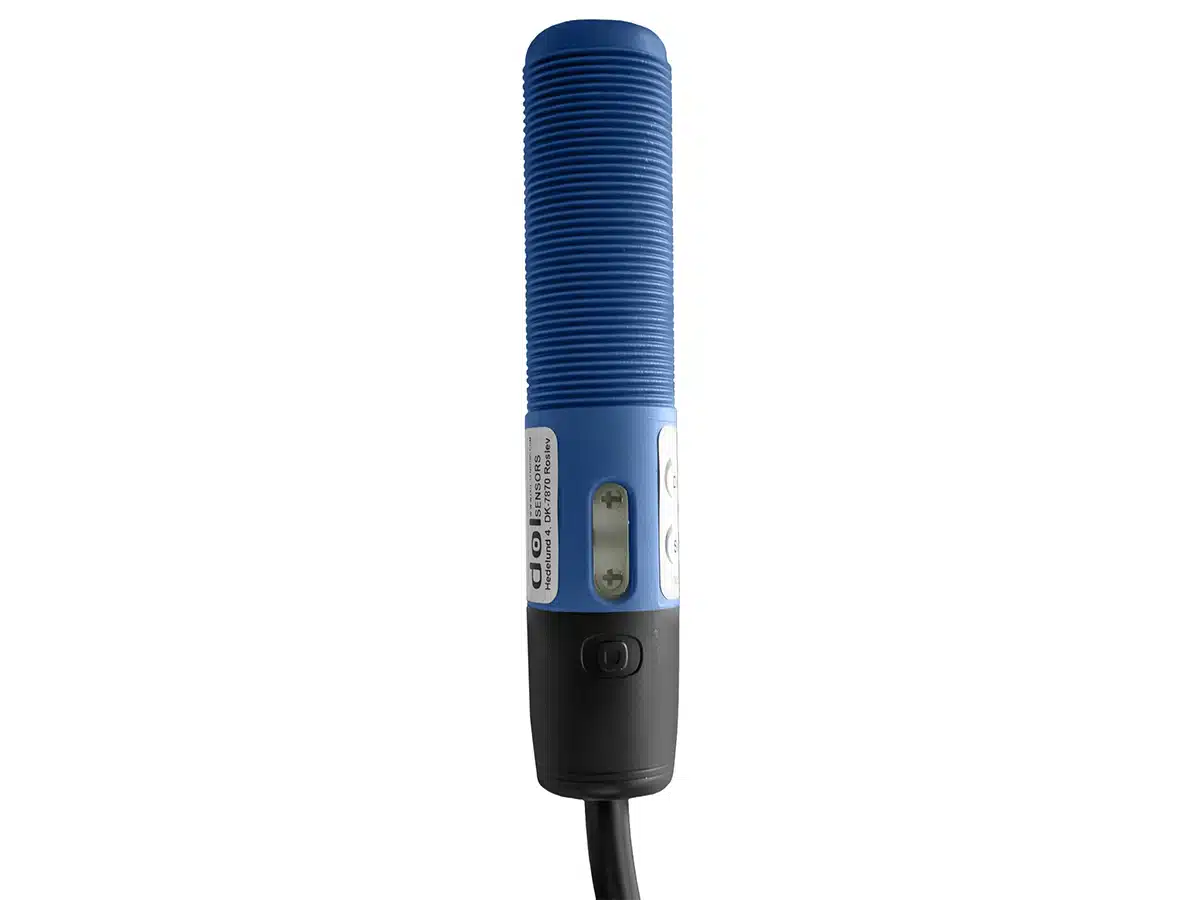

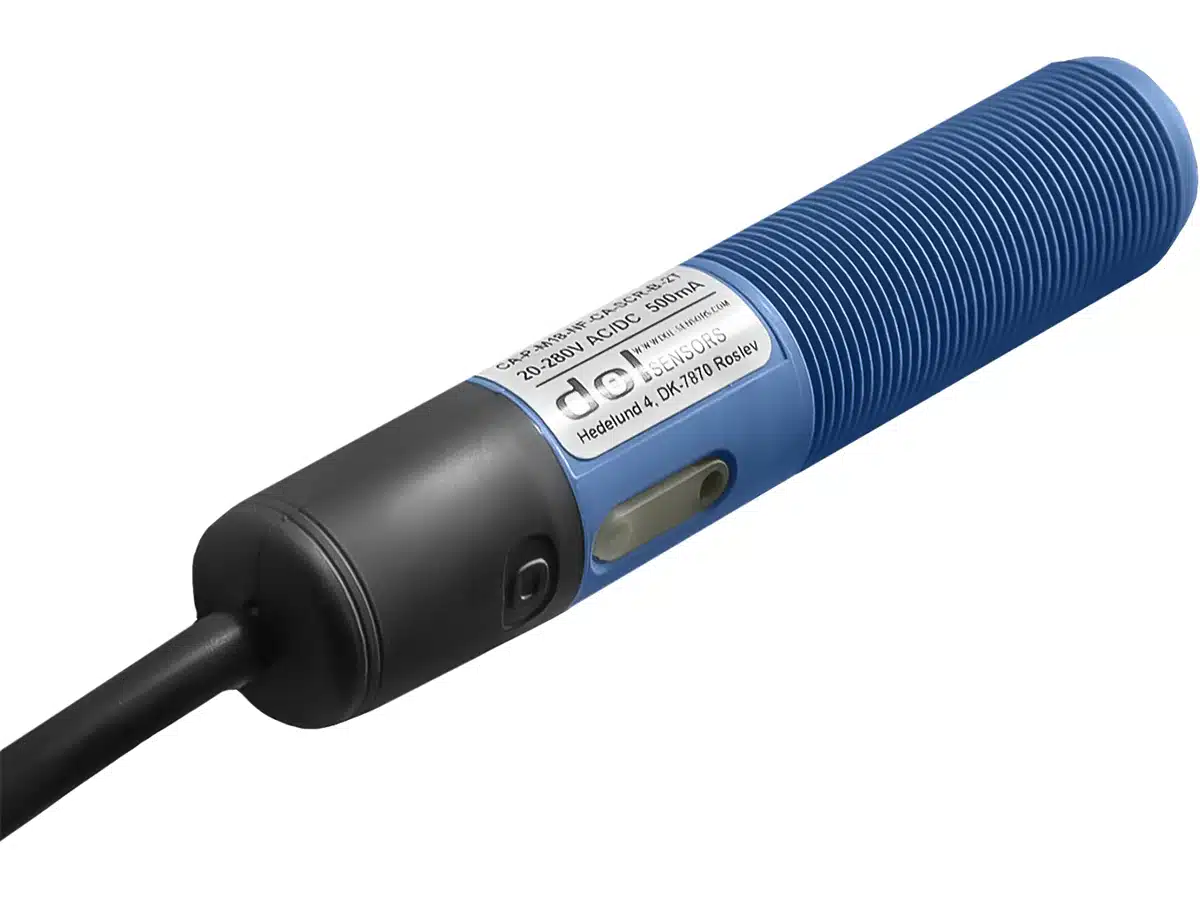

DOL26 Small Capacitive Proximity Sensor
Model: DOL26-CAP
DOL26 Small Capacitive Proximity Sensor
Model: DOL26-CAP
Compact feed and material detection for livestock applications

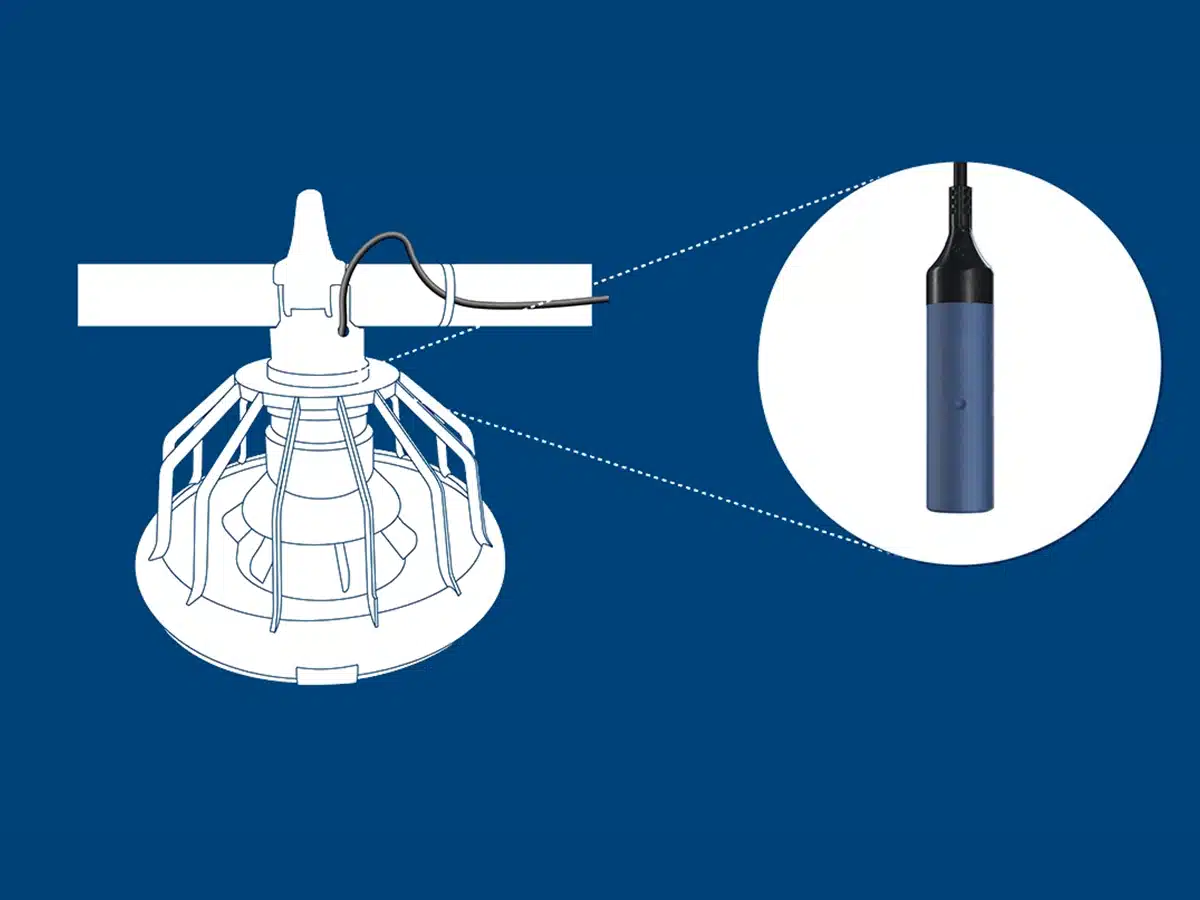

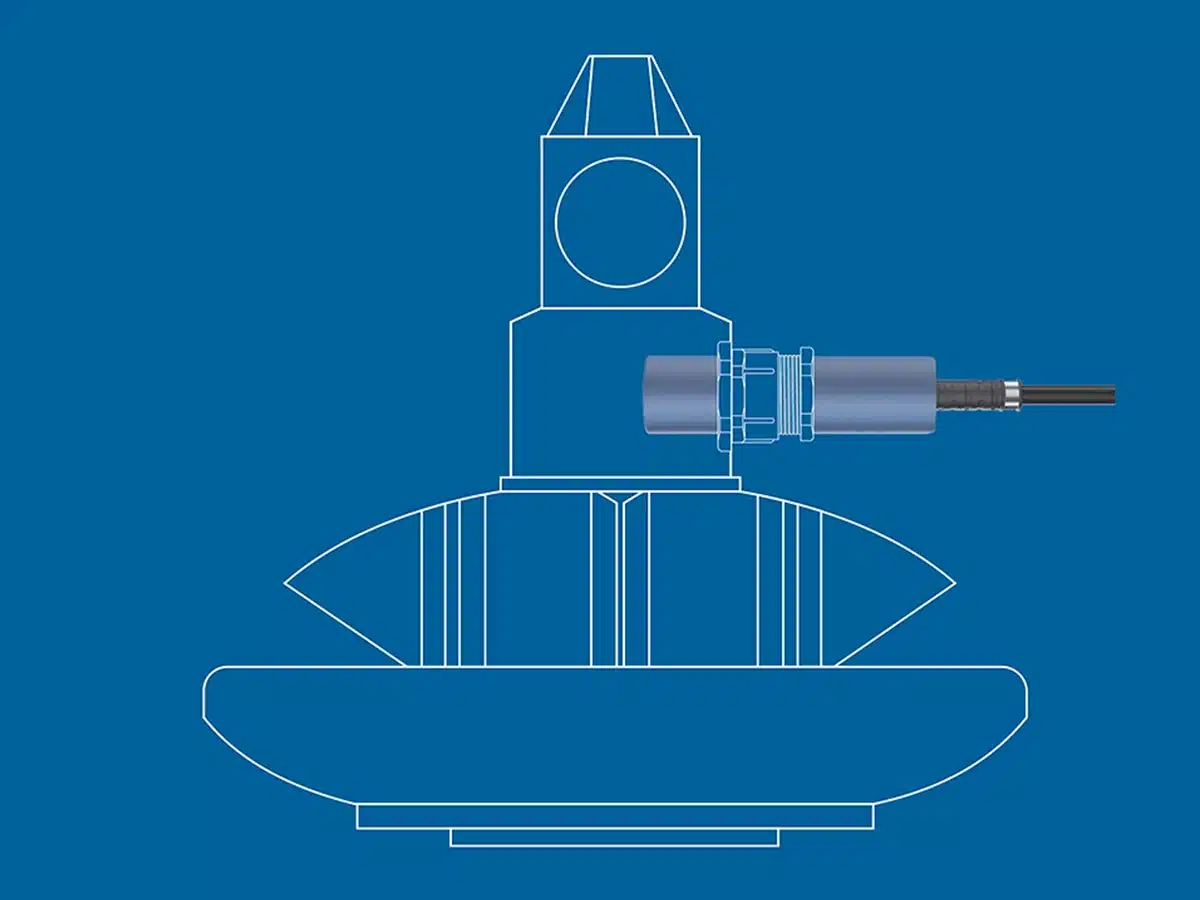

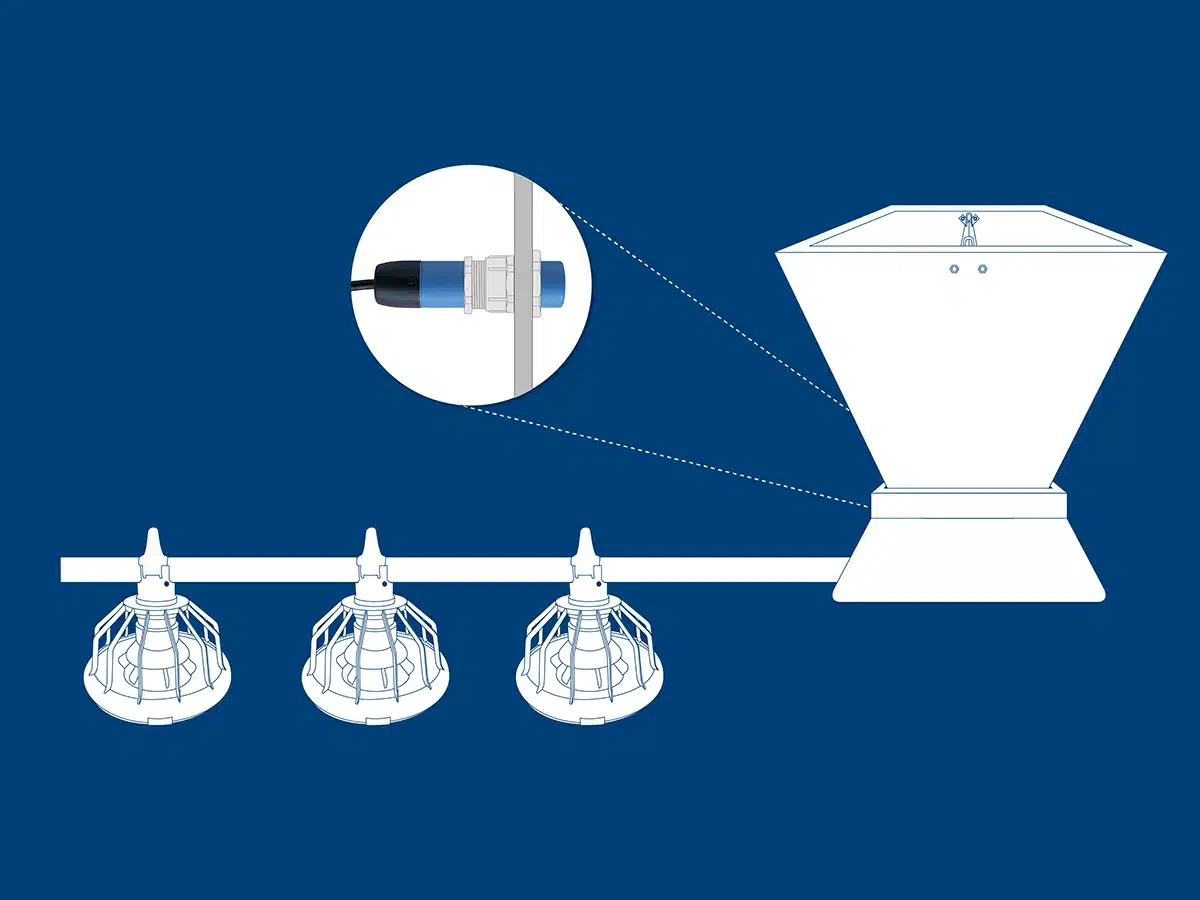

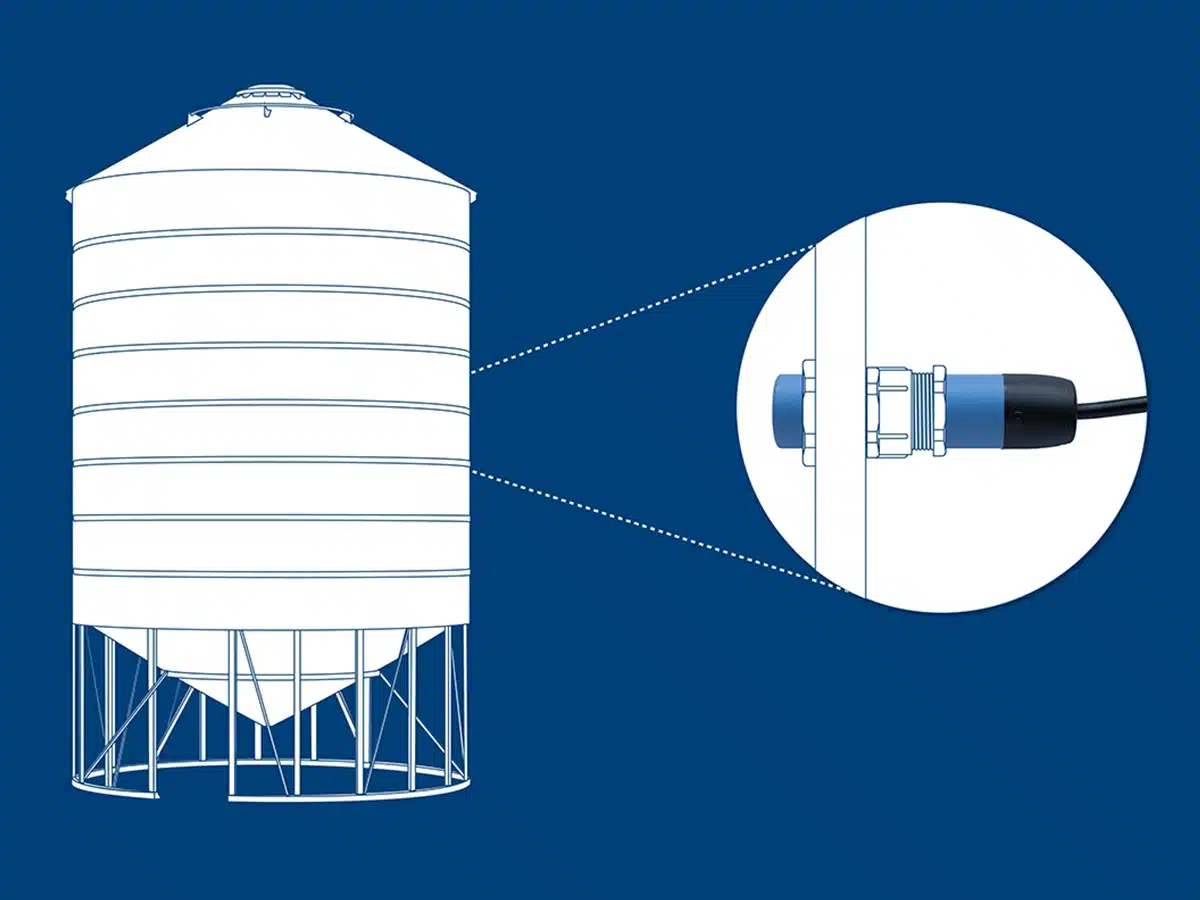

The DOL26 capacitive proximity sensor detects loose and solid materials such as feed, grain, bedding, and pellets. It is ideal for monitoring material presence in livestock feeding systems and other agricultural applications.
Designed for harsh environments, the DOL26 withstands high humidity and dust levels and is fully temperature compensated for reliable performance. It is immune to EMI, short circuits, and overloads.
The compact 18 mm design fits in tight spaces, making the DOL26 suitable for feed systems and other applications where mounting space is limited.
The DOL26 is available in standard and adjustable models. The adjustable version allows sensitivity and timing adjustments for different applications.
Models
- DOL26-CAP-SCR is non adjustable
- DOL26-CAP-SCR-A has adjustable sensitivity and time delay
Both models are compatible with AutoFlex Connect. See complete compatibility chart.
