- 6-foot cable
- NEMA 4X enclosure (corrosion-resistant, water-resistant, and fire-retardant)
- QPS certification
- Limited warranty

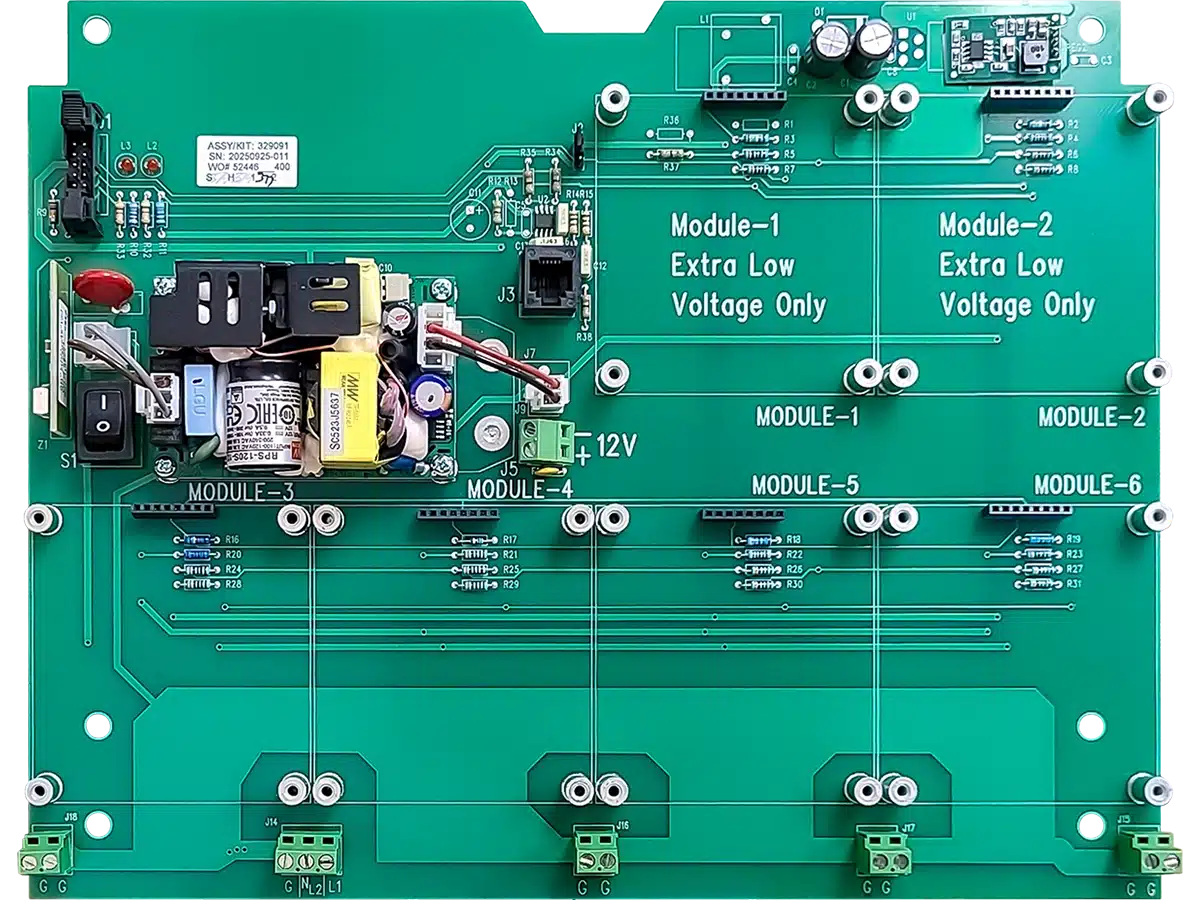

Connect Series Expansion Box (6 Modules)
Model: EXPANSION-6
Connect Series Expansion Box (6 Modules)
Model: EXPANSION-6
Expand your system
Expansion Boxes allow you to add additional capacity to AutoFlex Connect or AutoFlex Connect II controls.
An Expansion Box connects to its master control and is then available in the control’s interface and becomes a seamless part of your system.
There are two models of Expansion Boxes:
- EXPANSION-14 has space for 14 modules
- EXPANSION-6 has space for 6 modules
In Stock
Downloads
Actuator Module
The Actuator Module has one open and one close relay for controlling actuators or curtain machines, and includes a potentiometer input for feedback.
Actuator Module with Timed Feedback
The ACT-1T has one open and one close relay, each with a current sensor, to control inlets and curtain machines that require timed feedback.
Actuator Module with DC Signal Input
The Actuator Module has one open and one close relay for controlling actuators or curtain machines, and includes a 0-10 V DC signal input for feedback.
Input Module
The IN-4 is a four-input Smart Module that precisely measures analog, digital, and pulse/count sensors.
Relay Module with Current Sensing
The RM-2 Relay Module has two high-capacity, general-purpose relays. Each relay has current sensing.
Three-Phase Relay Module
The RM-2-3PH has two high-capacity relays and two pilot relays for controlling motors. The relays operate as pairs, with one high-capacity and one pilot relay in each pair. The high-capacity relays have current sensing.
Relay Module
The RM-4 is a Smart Module that has four relays to control fans, heaters, lights, and other equipment. The RM-4 features a built-in microprocessor that precisely controls equipment.
Variable AC Module
The Variable AC Module has one variable output with current sensing, a temperature sensor connector for use with heat mats, and a connection for a Variable Load Expansion Box (VLX-20).
Variable Chimney Module (DC)
The Variable Chimney Module has two 0 to 10 V DC signal outputs and one measuring fan input.
Feed Loop Kit
The Feed Loop Kit includes two modules. The Loop Drive module has one relay for the chain/drive motor and one for the auger/fill motor. The Loop Sense module has inputs for feed proximity, chain safety, and two additional sensors.
